Drive eRazer Ultra

Multi-function device that completely erases all data from a hard drive

Stand-alone product for erasing SATA & PATA hard drives; LCD; multiple modes

Product name: Drive eRazer Ultra

Patent: U.S. Patent No. 8,090,904

Host (I/O) Ports:

(1) USB 2.0: up to 480 Mbps
(1) DB9 female serial connector

Drive Types Supported:

PATA/IDE 2.5" drives (with PATA Adapter 25)
PATA/IDE 3.5
SATA 2.5" drives
SATA 3.5" drives
SATA SSD (solid state drives)
Hitachi 1.8" drives (with PATA Adapter 25)
Toshiba 1.8" drives (with PATA Adapter 18-TOSH)
MacBook Air 2010 (with SATA Adapter MBA2010)
MSATA (with SATA Adapter mSATA)
Mini PCIe PATA (with PATA Adapter mPCIe)
Mini PCIe SATA (with PATA Adapter mPCIe)
Mini PCIe USB (with PATA Adapter mPCIe)

Sector Size Compatibility: SATA 512n and 512e type drives (incompatible with 4Kn type drives)

Supports S.M.A.R.T. disk info: Yes

Number of LEDs: 5

Description of LEDs: Drive access, HPA/DCO detected, error, power input status, power output status

LCD Screen: Two-line backlit LCD controlled with four soft-touch menu navigation buttons

LCD Info: 2 lines x 16 characters width

LCD Backlight: Yes

Navigation menu: LCD/button driven menu system

Printer Ports: 1

Printer info: (1) DB9 female serial connector

Detects/reports HPA/DCO: Yes

Allows HPA/DCO override: Yes, user-configurable options

Construction material(s): Rugged aluminium construction

Power switch: 2 position: On / Off

Dimensions: 2.95" x 4.33" x 1.06" (75mm x 110mm x 27mm)

Weight: 0.40 lbs. (0.18 kg)

Erase modes:

Quick Erase, Custom Erase, Random Erase, Secure Erase Normal, Secure Erase Enhanced, DoD Clear, DoD Sanitize, NIST800-88 Clear, NIST800-88 Purge, CSEC ITSG-06, HMG IS5, DSD ISM 6.2.92

Compliancy:

FCC, CE, RoHS, C-Tick, RCM

Warranty:

WiebeTech provides a 3-year limited warranty for this product.

Technical Support:

Your investment in WiebeTech products is backed up by our free technical support for the lifetime of the product. If you need to contact us for any reason, visit wiebetech.com/support or call us at +1 (360) 816-1800.

About Drive eRazer Ultra

Before selling or disposing of an old computer or hard drives, you’ll want to make sure personal and business information is really removed from them first.

Completely erasing a hard drive is more complex than deleting a file or reformatting the drive. To safely sanitize your drive, you need to completely write over every bit. Otherwise, your sensitive data is there for the taking.

No computer needed

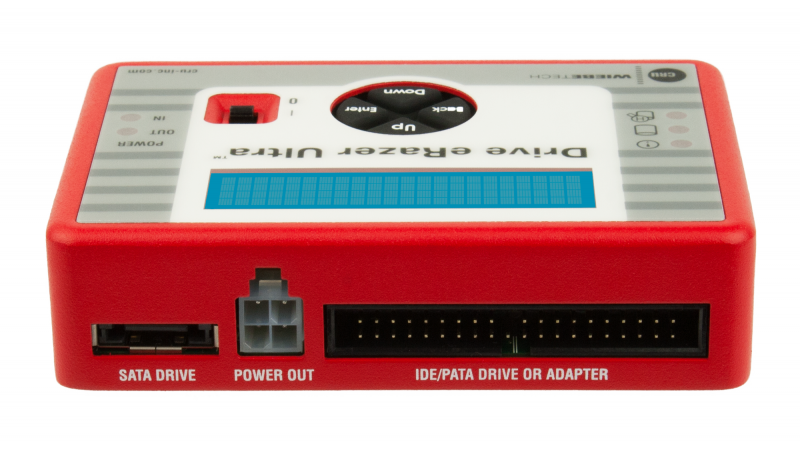

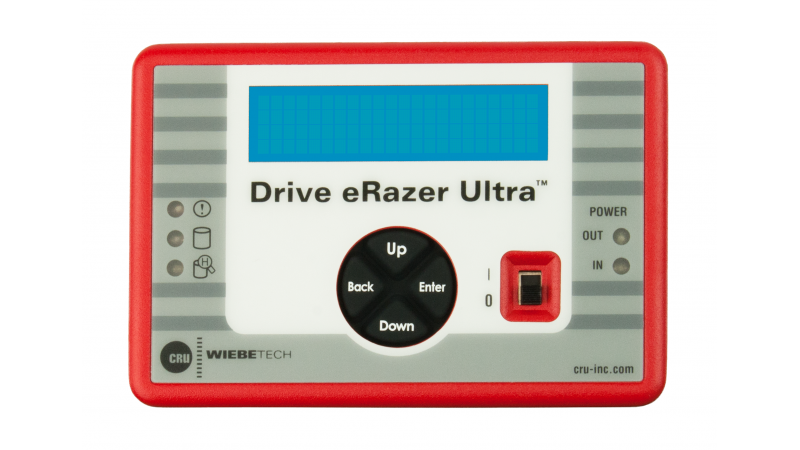

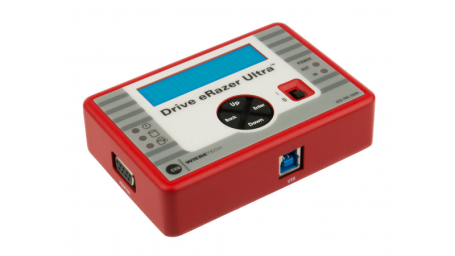

The CRU® WiebeTech® Drive eRazer™ Ultra is a stand-alone device that completely and quickly cleans hard drives. Simply connect a drive to the Drive eRazer Ultra and it will sanitize the drive faster than using software, and without tying up your computer.

NEW:

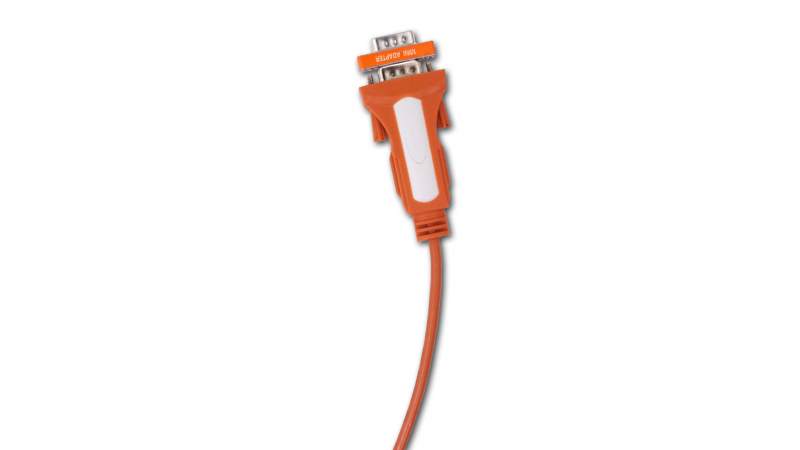

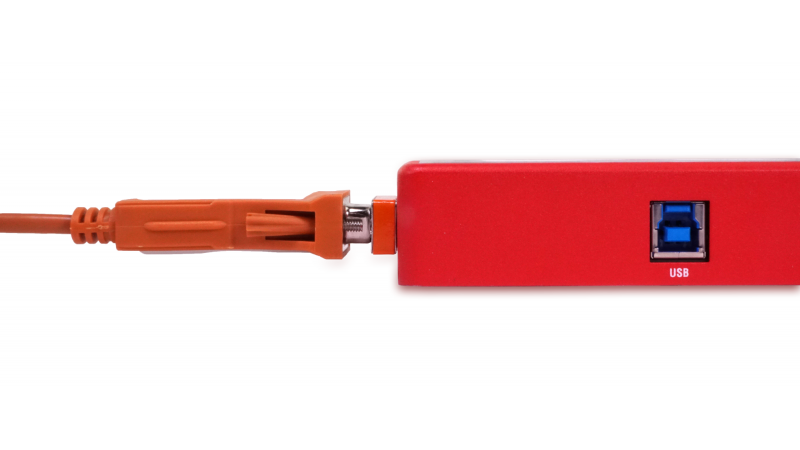

Using the Drive eRazer Ultra Output Cable, it's easy to capture erasure reports. Instead of having to rely on a specialized label printer, this cable and our free Drive eRazer App simplify the process so you can save erasure reports as TXT files on a Windows PC. The app also allows users to look at the hex view of the drive to easily determine if the drive contains data, and to verify that the drive has no data after it's been erased.

The Drive eRazer Ultra leaves the drive ready for safe re-use, and comes with a dozen different preset erase procedures, including US Department of Defense graded methods for data wiping.

Additional features:

Simple setup and operation with LCD and menu buttons
USB port for drive previewing and deletion confirmation
Serial label printer connector*
Rugged aluminum construction
3-year warranty
Free US-based customer support

Whether you’re an IT manager or business owner, and you want your sensitive information sanitized from a drive, the Drive eRazer Ultra is the perfect tool.

*Serial printers that support ZPL II. Here's a list of known compatible printers.
