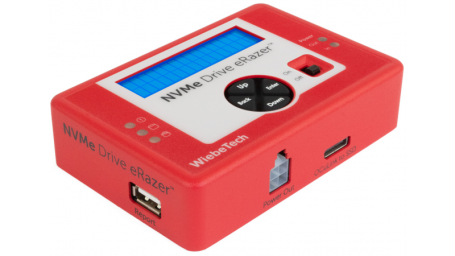

NVMe Drive eRazer

Completely and securely erase NVMe M.2 and U.2 SSDs


Stand-alone product for erasing NVMe M.2 and U.2 SSDs; LCD; multiple modes

Product name: NVMe Drive eRazer

Host (I/O) Ports: (1) USB 3.2 Gen 2 Type-C: up to 10 Gbps

Supports S.M.A.R.T. disk info: Yes

Number of LEDs: 5

Description of LEDs: Error, drive activity, hidden area detection, DC power input, +5V/+12V power output

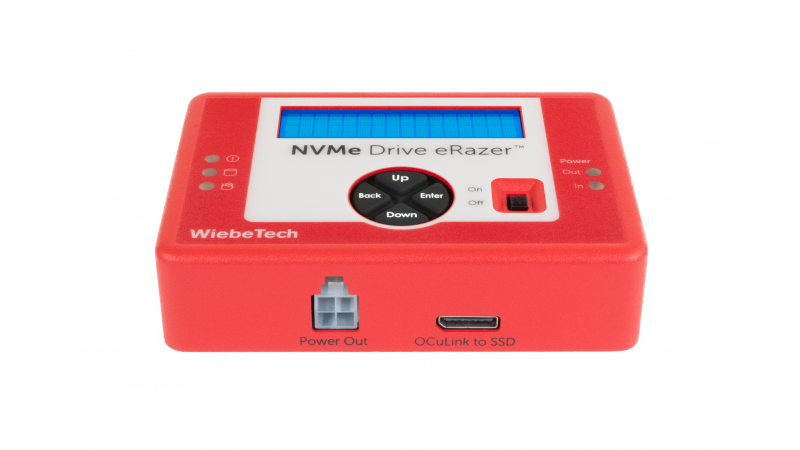

LCD Screen: Two-line backlit LCD controlled with four soft-touch menu navigation buttons

LCD Info: 2 lines x 16 characters width

LCD Backlight: Yes

Navigation menu: LCD/button driven menu system

Operating system compatibility:

Windows 11, 10, and 8.1
Windows Server 2022, 2019, 2016, and 2012 product families
macOS 10.15 “Catalina” or newer
Red Hat Enterprise Linux and Ubuntu LTS

Power switch: 2 position: On / Off

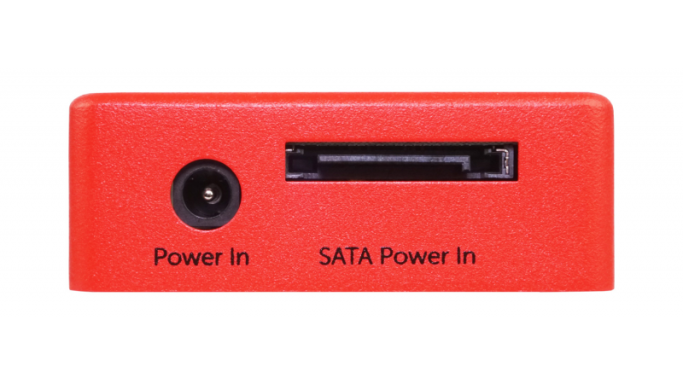

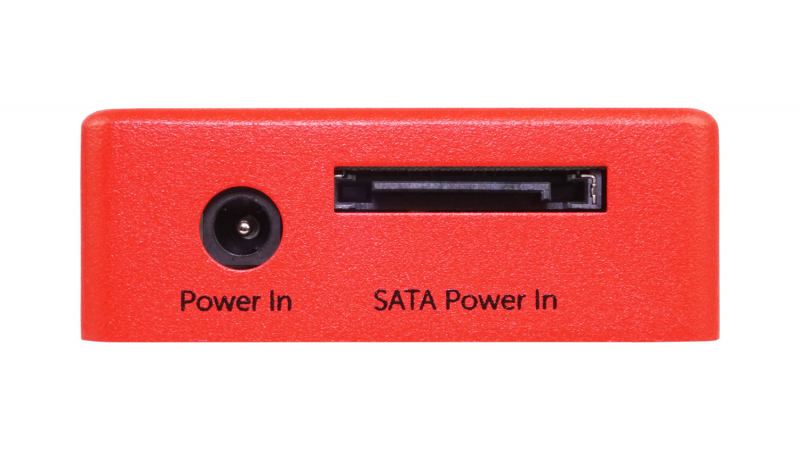

Power input connector: Barrel connector (center pin positive) or SATA power connector

Dimensions: 2.95" x 4.33" x 1.06" (75mm x 110mm x 27mm)

Weight: 0.40 lbs. (0.18 kg)

Erase modes:

Quickest Erase, Random Erase, Verify Only, Australia ISM, Block Erase, Crypto Erase, Custom Erase, DOD Clear, Format Crypto, Format Data, HMG IS5, ITSP.40.006 V2, NIST800-88 Clear, NIST800-88 Purge

Compliancy: FCC, UL, CE, RoHS, RCM

Warranty: WiebeTech provides a 3-year limited warranty for this product.

Technical Support:

Your investment in WiebeTech products is backed up by our free technical support for the lifetime of the product. If you need to contact us for any reason, visit wiebetech.com/support or call us at +1 (360) 816-1800.


About NVMe Drive eRazer

NVMe SSD sanitizing

Completely erase your used M.2 or U.2 NVMe SSDs. Erasing all data from an SSD is more complex than deleting a file or reformatting the drive. To safely sanitize your SSD you need to write over every bit. Otherwise your sensitive data is there for the taking.

No computer needed

The WiebeTech® NVMe Drive eRazer™ is a stand-alone device that completely and quickly cleans NVMe SSDs. Simply connect a drive to the NVMe Drive eRazer and it will sanitize the drive faster than using software and without tying up your computer.

Automatic digital report generation

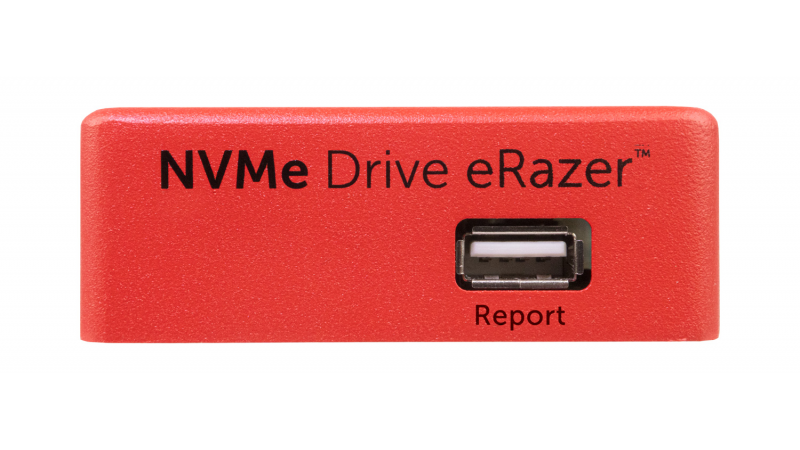

After each drive is erased, the NVMe Drive eRazer is configured by default to output a digital report. Instead of having to rely on a specialized label printer, use our free Drive eRazer App or a third party terminal app so you can save erasure reports as TXT files on a Windows PC. All you need is a USB Type-A cable.

Fourteen different erase modes

The NVMe Drive eRazer leaves the drive ready and safe for re-use, with over a dozen different preset erase procedures, including the US Department of Defense Clear standard and the data sanitization standards for Great Britain, Canada, and Australia. You can even configure your own custom erase mode in the settings.

Quickly choose the fastest supported erase mode

The NVMe Drive eRazer can automatically detect the fastest erase method supported by your SSD. Just choose "Quickest Erase" when you start up the NVMe Drive eRazer.

Visually confirm sanitization

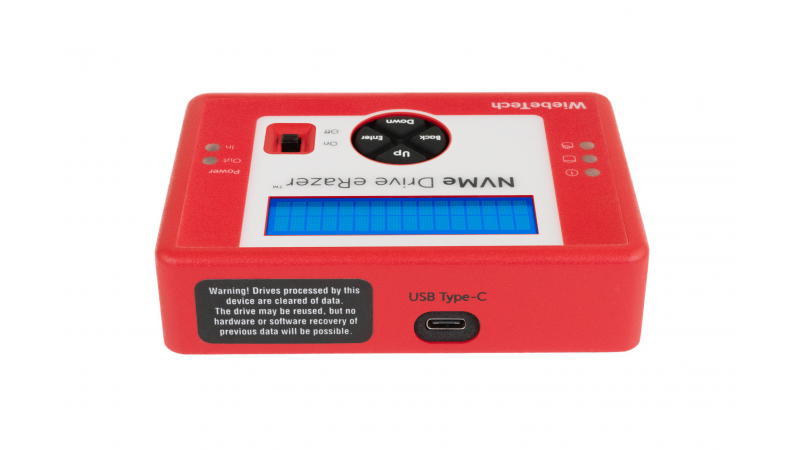

Connect the NVMe Drive eRazer to your computer via its USB Type-C port to preview the attached M.2 or U.2 NVMe SSD's contents or visually confirm deletion. You can also optionally use the NVMe Drive eRazer to copy or move files to or from the attached drive.

Additional features

These additional features ensure fast and efficient drive erasure:

  • Simple setup and operation with LCD and menu buttons
  • USB Type-C port for drive previewing and deletion confirmation
  • Rugged aluminum construction
  • 3-year warranty
  • Free US-based customer support

Included Items

  • (1) Power adapter & power cord
  • (1) Power adapter label
  • (1) U.2-to-OCuLink adapter
  • (1) M.2-to-U.2 adapter
  • (1) USB A-A cable
  • (1) Quick start guide

 Documentation and Downloads

Drive Erazer App
Oct 1, 2021 - 7.95 MB

Quick Start Guide for NVMe Drive eRazer
Jun 15, 2022 - 2.49 MB

User Manual for NVMe Drive eRazer
Jun 15, 2022 - 5.7 MB

Firmware Updater v1.0.0.4
Nov 4, 2022 - 9.63 MB
