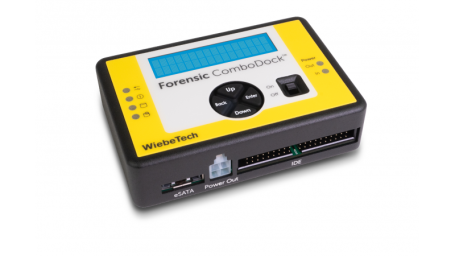

Forensic ComboDock, model FCDv6

Professional hard drive write blocker with read/write capabilities

Write-blocked or read/write access to SATA & IDE/PATA drives; USB 3.2 Gen2 10Gbps; complete kit with cables and AC adapter

Product name: Forensic ComboDock FCDv6

Patent: U.S. Patent No. 8,090,904

Host (I/O) Ports: (1) USB 3.2 Gen 2 Type-C: up to 10 Gbps (Actual transfer speeds up to 6 Gbps)


Drive Types Supported:

  • PATA/IDE 2.5" drives (with PATA Adapter 25)
  • PATA/IDE 3.5
  • SATA 2.5" drives
  • SATA 3.5" drives
  • SATA SSD (solid state drives)
  • Hitachi 1.8" drives (with PATA Adapter 25)
  • Toshiba 1.8" drives (with PATA Adapter 18-TOSH)
  • MacBook Air 2010 (with SATA Adapter MBA2010)
  • MSATA (with SATA Adapter mSATA)
  • Mini PCIe PATA (with PATA Adapter mPCIe)
  • Mini PCIe SATA (with PATA Adapter mPCIe)
  • Mini PCIe USB (with PATA Adapter mPCIe)

Sector Size Compatibility: Compatible with 512, 512e and 4Kn drive type

Supports S.M.A.R.T. disk info: Yes

Number of LEDs: 6

Description of LEDs: Drive access, HPA/DCO/AMA detected, error, power input status, power output status, write-block status

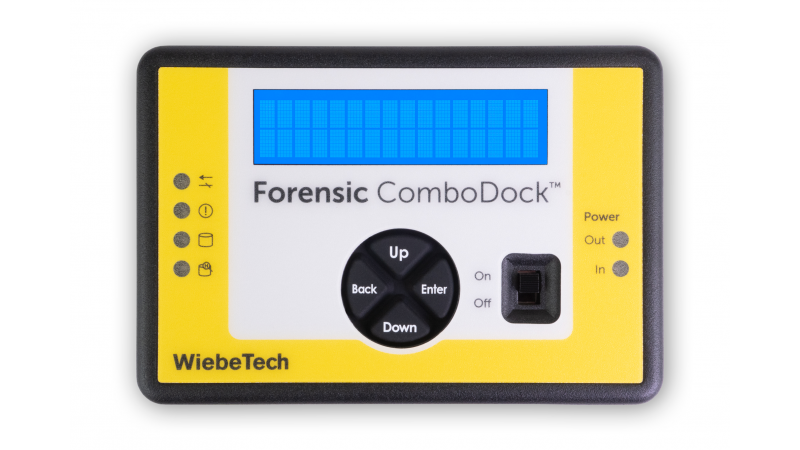

LCD Screen: Two-line backlit LCD controlled with four soft-touch menu navigation buttons

LCD Info: 2 lines x 16 characters width

LCD Backlight: Yes

Navigation menu: Button-driven LCD menu system

Operating system compatibility:

Windows 11, 10, and 8.1
macOS 10.15 “Catalina” or newer
Red Hat Enterprise Linux and Ubuntu LTS


Detects/reports HPA/DCO: Yes

Allows HPA/DCO override: Yes, user-configurable options

Construction material(s): Rugged aluminum construction

Power switch: 2 position: On / Off

SATA Power Input: Yes

Dimensions: 2.95" x 4.33" x 1.06" (75mm x 110mm x 27mm)

Weight: 0.40 lbs. (0.18 kg)

Write Blocking: Yes

Write Protection: Write blocked, with optional read-write mode

WriteLock: Yes

Compliancy: FCC, UL, CE, RoHS, RCM

Warranty:

WiebeTech provides a 3-year limited warranty for this product.

Technical Support:

Your investment in WiebeTech products is backed up by our free technical support for the lifetime of the product. If you need to contact us for any reason, visit wiebetech.com/support or call us at +1 (360) 816-1800.
