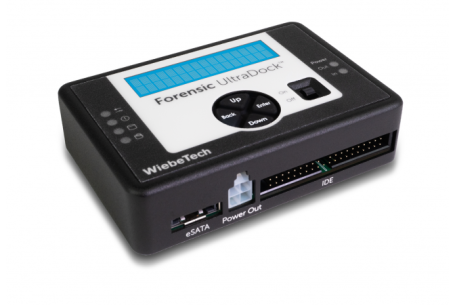

Forensic UltraDock, model FUDv6

Write-blocked access to SATA & IDE/PATA drives; USB 3.2 Gen2 10Gbps; complete kit with drive cables, USB cables, AC adapter

Professional drive write blocker gives fast forensic access to bare hard drives

Product name: Forensic UltraDock FUDv6

Patent:mU.S. Patent No. 8,090,904

Host (I/O) Ports: (1) USB 3.2 Gen 2 Type-C: up to 10 Gbps (Actual transfer speeds up to 6 Gbps)

Drive Types Supported:

  • PATA/IDE 2.5" drives (with PATA Adapter 25)
  • PATA/IDE 3.5
  • SATA 2.5" drives
  • SATA 3.5" drives
  • SATA SSD (solid state drives)
  • Hitachi 1.8" drives (with PATA Adapter 25)
  • Toshiba 1.8" drives (with PATA Adapter 18-TOSH)
  • MacBook Air 2010 (with SATA Adapter MBA2010)
  • MSATA (with SATA Adapter mSATA)
  • Mini PCIe PATA (with PATA Adapter mPCIe)
  • Mini PCIe SATA (with PATA Adapter mPCIe)
  • Mini PCIe USB (with PATA Adapter mPCIe)

Sector Size Compatibility: Compatible with 512, 512e and 4Kn drive types

Supports S.M.A.R.T. disk info: Yes

Number of LEDs: 6

Description of LEDs: Drive access, HPA/DCO/AMA detected, error, power input status, power output status, write-block status

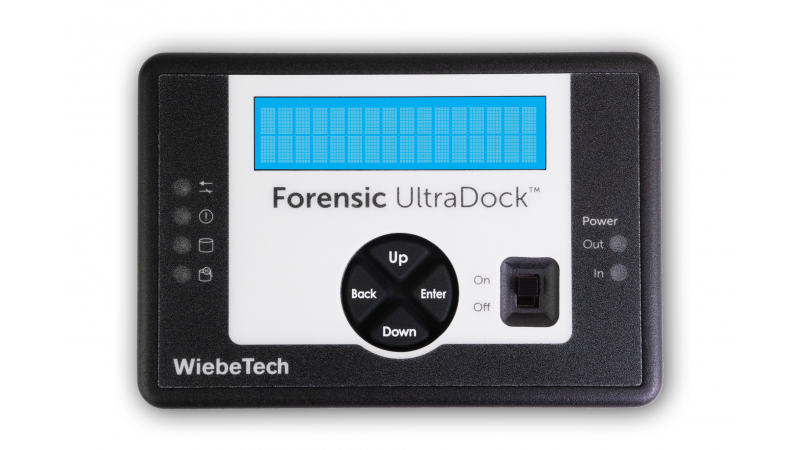

LCD Screen: Two-line backlit LCD controlled with four soft-touch menu navigation buttons

LCD Info: 2 lines x 16 characters width

LCD Backlight: Yes

Navigation menu:

Button-driven LCD menu system:

Operating system compatibility:

Windows 11, 10, and 8.1
macOS 10.15 “Catalina” or newer
Red Hat Enterprise Linux and Ubuntu LTS

Detects/reports HPA/DCO: Yes

Allows HPA/DCO override: Yes, user-configurable options

Construction material(s): Rugged aluminum construction

Power switch: 2 position: On / Off

SATA Power Input: Yes

Dimensions: 2.95" x 4.33" x 1.06" (75mm x 110mm x 27mm)

Weight: 0.40 lbs. (0.18 kg)

Write Blocking: Yes

Compliancy: FCC, UL, CE, RoHS, RCM

Warranty: WiebeTech provides a 3-year limited warranty for this product.

Technical Support:

Your investment in WiebeTech products is backed up by our free technical support for the lifetime of the product. If you need to contact us for any reason, visit or call us at +1 (360) 816-1800.


About Forensic UltraDock FUDv6

Professional Grade Write Blocking

The WiebeTech® Forensic UltraDock™ FUDv6 allows digital forensics investigators, technicians, and lawyers to view and image a data drive without altering its contents. It’s an easy-to-use drive dock that is compatible with forensic acquisition and analysis software and connects via USB-C.


 Uncompromisable, Always-On Write Blocking

It's impossible to unintentionally turn off write-blocking. Each time you turn the Forensic UltraDock FUDv6 on, you are viewing a drive in a write-blocked mode. This prevents you from compromising your evidence, which could occur on other write blocking products if you forget to change the mode back to write blocking.


Detect and Remove Hidden Areas

You can detect, remove, or modify Host Protected Areas (HPAs), Device Configuration Overlays (DCOs), and Accessible Max Address Configurations (AMAs) that may be hiding additional data on the suspect drive. The LCD menu makes such actions easy—there are no complicated DIP switches to set.


Drive Information at Your Fingertips

Quickly access selected important SMART data such as hours used, number of power cycles, and disk health. It can also display the model and serial number reported by the attached drive's firmware. Free downloadable software can also allow you to view this information on your computer and save it to a file for easy inclusion in a case report.


Effortless Drive Connections

The Forensic UltraDock FUDv6's drive connector enables automatic alignment and easy insertion. Then attach it to your computer via its orientation-free USB-C connector.


Wide Drive Support Available

The Forensic UltraDock FUDv6 works natively with the most common types of hard drives and SSDs like IDE/PATA and SATA. But if you need to work with a non-standard drive there are a variety of adapters available for additional flexibility.


Additional features:

  • Compatible with forensic acquisition and analysis software
  • Aluminum case for rugged durability
  • 3-year warranty
  • Free US-based customer support

Included Items

  • AC adapter & power cord
  • USB Type-C cable
  • USB Type-A to Type-C cable
  • SATA drive attachment cable
  • IDE drive cable
  • Molex MiniFit to legacy power cable
  • Quick Start Guide

Documentation and Downloads

Quick Start Guide for Forensic UltraDock FUDv6
Feb 25, 2022 - 2.3 MB

User Manual for Forensic UltraDock FUDv6
Apr 6, 2022 - 4.73 MB


WriteBlocking Validation Utility (64-bit Windows)
Jul 29, 2022 - 12.68 MB
