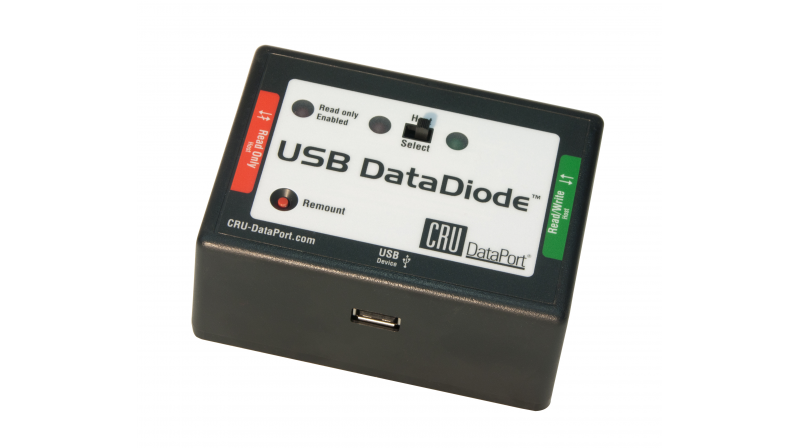

USB DataDiode

Move data from an unsecure network to a secure network

Connects to two computers with one read/write connection and one read-only connection

Product name: USB DataDiode

Host (I/O) Ports: (2) USB 2.0: up to 480 Mbps

Drive Types Supported:

  • USB Thumb Drives
  • USB drives via USB cable (if the device class is USB Mass Storage Device and it does not use proprietary firmware)

Number of LEDs: 3

Description of LEDs: Read-write, read-only, power

Operating system compatibility:

Windows 11, 10, and 8.1
Windows Server 2022, 2019, 2016, and 2012 product families
macOS 10.15 “Catalina” or newer
Red Hat Enterprise Linux and Ubuntu LTS

Bus power: Yes

Dimensions: 4.33" x 3.11" x 2.09" (110mm x 79mm x 53mm)

Weight: 0.35 lbs. (0.16 kg)

Write Blocking: Yes

Write Blocked ports: USB 2.0 Mass Storage Devices

Compliancy: RoHS


WiebeTech provides a 2-year limited warranty for this product.

Technical Support:

Your investment in WiebeTech products is backed up by our free technical support for the lifetime of the product. If you need to contact us for any reason, visit or call us at +1 (360) 816-1800.


About USB DataDiode

Lawyers, forensics investigators, and corporate IT staff who want to transfer data from an unsecured network to a secured network rely upon the CRU® WiebeTech® USB DataDiode™ to protect data.

In network environments with secure (classified) networks, rules exist to keep the secure network isolated from less secure (unclassified) networks. USB DataDiode ensures connection to only one host at a time, so that secure and non-secure networks are never connected to each other.

USB DataDiode is connected to two hosts with two USB cables. It's easy to select the desired host with the flip of a switch.

Prepare data to copy from the unsecure host with full read/write access to the USB device connected to USB

Press the switch on USB DataDiode to terminate the connection with the unsecure host, and begin a connection with the secure host.

The secure host now can copy data, but cannot write any data back to the USB device, as this host has a read-only connection.

Use the included Forensic Software Utility to display information about connected devices and enable you to save the information in common text formats when in Read-Only mode.

Additional features:

  • Compact design
  • Plug-and-use operation
  • Free lifetime phone tech support

Whether you’re a corporate IT manager, forensic investigator, or lawyer, the USB DataDiode is a valuable part of your investigation toolkit.

  • Convenient USB connection
  • Read-only, reliable evidence protection
  • Access to different USB devices

Included Items

  • (2) USB cables
  • Quick start guide

 Documentation and Downloads

User Manual for USB DataDiode
Mar 7, 2011 - 539.2 KB

Quick Start Guide for USB DataDiode
Apr 27, 2021 - 498.43 KB
